How to Detect SF6 Gas Leakage?

How to Detect SF6 Gas Leakage?

Sulfur hexafluoride (SF6) gas is widely used in electrical equipment due to its excellent insulating and arc – extinguishing properties. However, SF6 is a potent greenhouse gas, and its leakage can not only cause environmental harm but also affect the normal operation of electrical equipment. Therefore, accurate detection of SF6 gas leakage is crucial.

One of the most common methods is the use of infrared imaging technology. This method can visualize the leakage of SF6 gas by detecting the infrared radiation characteristics of the gas. Infrared cameras can capture the temperature difference caused by the leakage of SF6 gas, making it easy for technicians to locate the leakage point quickly and accurately. This non – invasive method is suitable for large – scale inspections of electrical equipment.

Another effective approach is the use of gas sensors. There are various types of SF6 gas sensors, such as electrochemical sensors and semiconductor sensors. Electrochemical sensors work by reacting with SF6 gas through an electrochemical reaction, generating an electrical signal proportional to the gas concentration. Semiconductor sensors, on the other hand, change their electrical conductivity when exposed to SF6 gas. These sensors can be installed in key areas of electrical equipment to continuously monitor the SF6 gas concentration and issue an alarm when leakage occurs.

In addition, ultrasonic detection can also be used to detect SF6 gas leakage. When SF6 gas leaks, it will produce ultrasonic signals. Ultrasonic detectors can pick up these signals and convert them into audible or visual alarms. This method is sensitive to small – scale leaks and is useful for pinpointing the exact location of the leakage.

Regular maintenance and inspection of electrical equipment are also essential for detecting SF6 gas leakage. During maintenance, technicians should carefully check the seals, joints, and other parts of the equipment that are prone to leakage. By combining multiple detection methods and regular maintenance, we can effectively detect SF6 gas leakage, protect the environment, and ensure the safe and stable operation of electrical equipment.

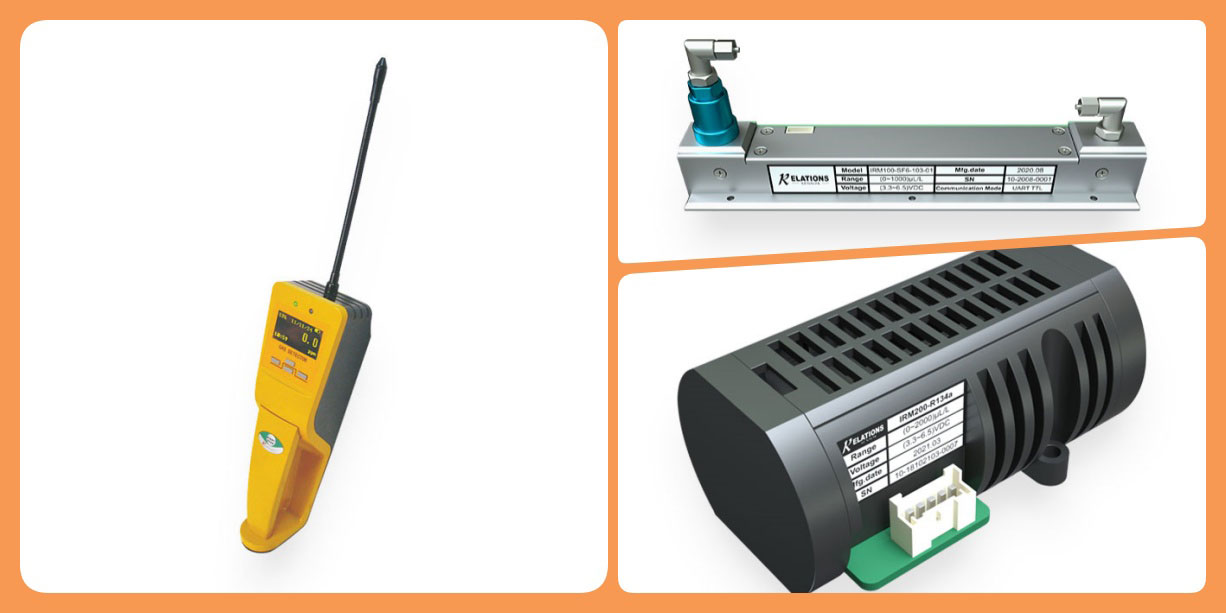

SF6 Gas Leak Detection Equipment
