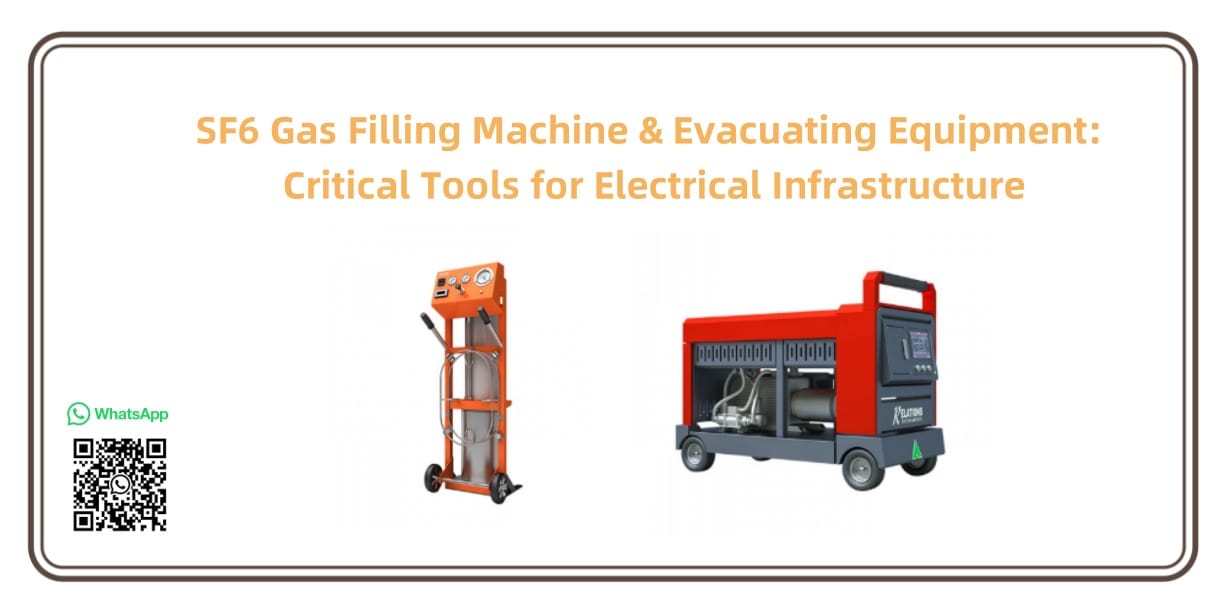

SF6 Gas Filling Machine & Evacuating Equipment: Critical Tools for Electrical Infrastructure

SF6 Gas Filling Machine & Evacuating Equipment: Critical Tools for Electrical Infrastructure

SF6 gas, renowned for its superior insulation and arc-quenching capabilities, is a cornerstone of high-voltage electrical systems. To ensure safe and efficient handling of this specialized gas, sf6 gas filling machine & evacuating equipment play indispensable roles in power grids, substations, and electrical manufacturing. This guide explores their functions, technical advantages, and key considerations for optimal use—essential knowledge for industry professionals.

What Are SF6 Gas Filling Machines?

An SF6 gas filling machine is engineered to precisely inject SF6 gas into electrical equipment such as circuit breakers, transformers, and GIS (Gas-Insulated Switchgear). Unlike generic filling tools, these machines feature:

High-precision pressure regulators (±0.1bar accuracy) to maintain optimal gas density, critical for equipment performance.

Integrated drying systems that remove moisture (≤50ppm) to prevent insulation degradation.

Automatic shutoff mechanisms to avoid overfilling, reducing gas waste and safety risks.

Ideal for both installation and maintenance, these machines minimize downtime in power facilities, with top models achieving filling rates of up to 5kg/h—30% faster than conventional systems.

Evacuating Equipment: Ensuring Purity in SF6 Systems

Evacuating equipment is equally vital, responsible for two core tasks:

• Vacuuming air and contaminants from equipment before SF6 filling. Advanced units achieve vacuum levels as low as 1Pa, eliminating moisture and oxygen that could react with SF6.
• Recovering used SF6 gas during decommissioning or repairs. Modern systems recover over 99% of gas, aligning with environmental regulations (e.g., EU F-Gas Regulation) to reduce greenhouse gas emissions.
• Key features include oil-free vacuum pumps (to avoid contamination) and digital pressure monitors for real-time tracking.

Why Choose Quality SF6 Handling Equipment?

Inferior tools risk equipment failure, gas leaks, and regulatory penalties. High-quality sf6 gas filling machine & evacuating equipment offer:

• Compliance: Certified to ISO 14532 (SF6 handling standards) and IEC 60480 (gas recovery guidelines).
• Durability: Stainless steel components resist corrosion in harsh substation environments.
• Cost savings: Efficient gas recovery reduces purchasing needs, while precise filling lowers rework rates.

Applications Across Industries

These tools are critical in:

• Power transmission: Maintaining 110kV–1000kV substations.
• Renewable energy: Supporting grid stability in wind and solar farms.
• Railway electrification: Ensuring reliable operation of high-voltage train systems.

Selecting the Right Equipment

When sourcing sf6 gas filling machine & evacuating equipment, prioritize:

• Manufacturer expertise (minimum 10 years in SF6 technology).
• After-sales support (on-site calibration, spare parts availability).
• Customization options (e.g., mobile units for field maintenance).

Investing in premium SF6 gas filling and evacuating equipment safeguards electrical infrastructure, reduces environmental impact, and ensures long-term operational efficiency. For power industry professionals, these tools are not just assets—they’re essential for sustainable energy systems.
