1. The Urgency of SF6 Gas Recovery: Beyond Compliance

For industries relying on SF6-powered equipment, unregulated gas emissions not only risk heavy fines but also increase operational costs. Traditional SF6 handling often involves renting external storage tanks or using recovery units without temperature control—leading to two critical problems:

Leakage risks: Transferring SF6 between external tanks and equipment creates multiple connection points, raising the chance of gas escape (even a 1% leakage rate can cost a mid-sized substation $10,000+ annually in gas replacement).

Low efficiency in cold environments: SF6 has a high boiling point (-63.8°C), but in low-temperature regions (e.g., northern Europe, northern China), the gas can condense into liquid, slowing recovery and refilling speeds. This delays equipment maintenance and extends downtime.

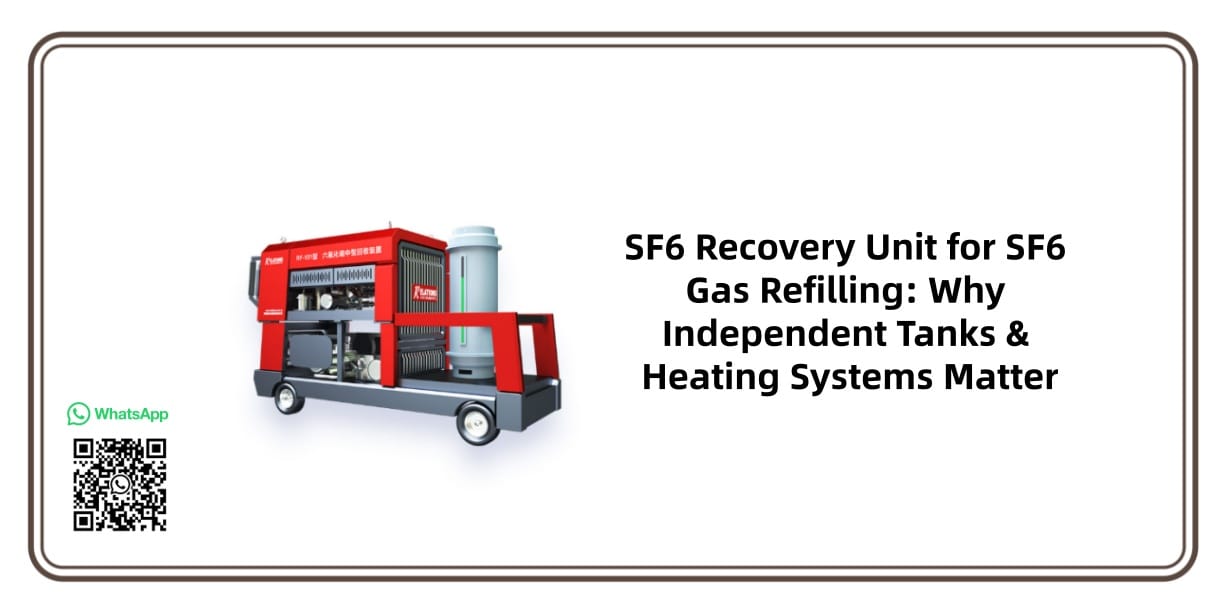

A specialized SF6 recovery unit with independent tank & heating system solves these pain points by integrating storage and temperature control into one compact solution.

2. Independent Tanks: Safety, Convenience, and Leakage Prevention

The independent tank is the “core storage module” of the SF6 recovery unit, and its design directly impacts gas handling safety and efficiency:

• No external reliance: Unlike units that require external cylinders, the built-in independent tank (typically 50L–200L, customizable for large-scale projects) eliminates the need for frequent tank swapping. This reduces labor costs and avoids accidental gas release during transfers.
• Pressure and corrosion resistance: High-quality independent tanks are made of stainless steel, designed to withstand SF6’s high pressure (up to 15 bar) and resist corrosion. They also include pressure gauges and safety valves to prevent overpressure, meeting international standards like IEC 60480.
• Easy purification integration: The independent tank connects directly to the unit’s filtration system (with molecular sieves and activated carbon), allowing recovered SF6 to be purified to 99.9% purity before refilling—ensuring equipment performance is not compromised by impure gas.

3. Heating Systems: Unlocking All-Weather SF6 Refilling Efficiency

The heating system is a game-changer for SF6 gas refilling, especially in harsh climates. Here’s how it adds value:

• Prevents condensation: The system uses low-power electric heaters (500W–1500W) to maintain the independent tank’s internal temperature at 0°C–50°C. This keeps SF6 in a gaseous state, even when ambient temperatures drop to -30°C.
• Speeds up refilling: Gaseous SF6 flows more smoothly than liquid, cutting refilling time by 30% compared to units without heating. For a 110kV GIS device, this means reducing maintenance downtime from 8 hours to 5.6 hours.
• Energy efficiency: Modern heating systems use thermostats to automatically adjust power—they only operate when the tank temperature falls below 5°C, avoiding unnecessary energy waste.

4. Who Benefits from This SF6 Recovery Unit?

The SF6 recovery unit with independent tank & heating system is not a one-size-fits-all solution—it’s tailored to industries with specific needs:

• Power utilities: Substations in cold regions (e.g., Canada, Russia) rely on it to maintain SF6 equipment during winter.
• Electrical equipment manufacturers: Companies producing GIS or circuit breakers use it to recover SF6 from test units, reducing raw material costs.
• Renewable energy projects: Wind farms and solar parks with high-voltage SF6 switches need efficient gas handling to meet green energy certifications.

5. Choosing the Right Unit: Key Considerations

When selecting an SF6 recovery unit for gas refilling, focus on:

• Tank capacity: Match it to your equipment’s SF6 volume (e.g., a 100L tank for small GIS, 200L for large breakers).
• Heating system reliability: Look for units with IP65-rated heaters (dust and water-resistant) for outdoor use.
• Compliance: Ensure the unit meets local regulations (e.g., EPA standards in the U.S., GB standards in China) to avoid compliance risks.

As the world tightens environmental regulations and industries seek to cut costs, the SF6 Recovery Unit for SF6 gas refilling with independent tank & heating system is no longer a “nice-to-have”—it’s a necessity. By combining leak-proof independent storage with all-weather heating, this unit ensures safe, efficient, and compliant SF6 handling, helping businesses reduce their carbon footprint while boosting operational productivity. For any organization working with SF6 equipment, investing in such a unit is an investment in long-term sustainability and cost savings.
