SF6 gas is indispensable in high-voltage electrical equipment, but its effective management requires specialized tools. The SF6 gas evacuation & refill unit stands as a cornerstone in maintaining the integrity of SF6-insulated systems, ensuring safety, efficiency, and environmental compliance. This guide breaks down everything you need to know about these critical units.

What Is an SF6 Gas Evacuation & Refill Unit?

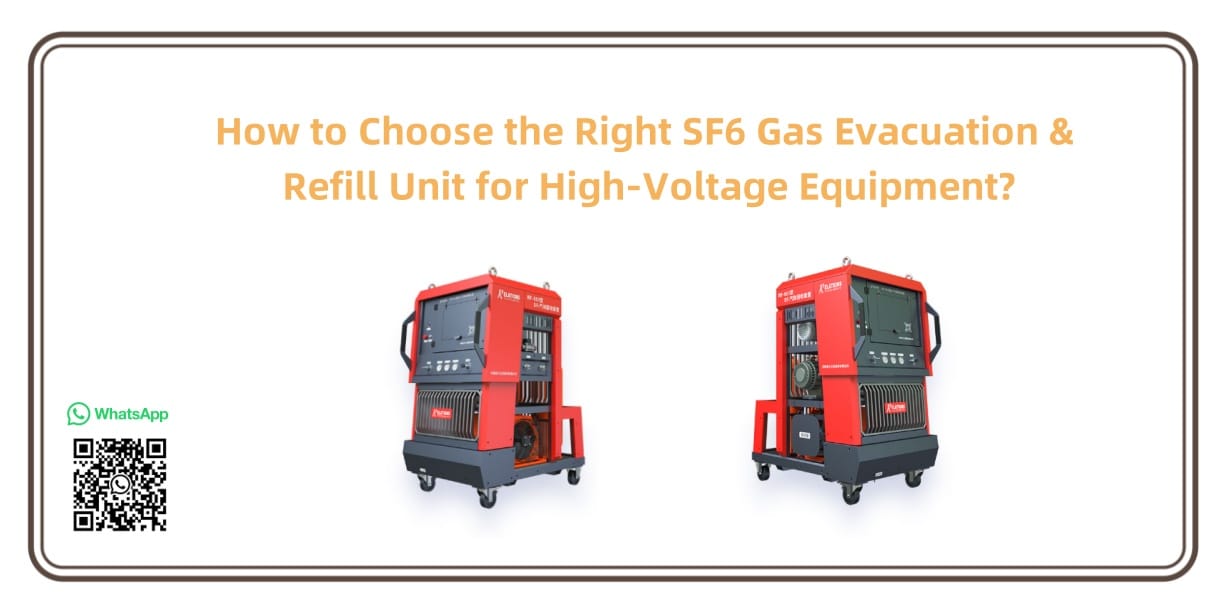

An SF6 gas evacuation & refill unit is a specialized device designed to safely remove (evacuate) and replenish (refill) sulfur hexafluoride gas in electrical apparatus. Used primarily with circuit breakers, gas-insulated switchgear (GIS), and transformers, these units prevent gas leaks, maintain optimal pressure levels, and ensure equipment operates at peak performance.

Key Functions of SF6 Gas Evacuation & Refill Units

The core functionality of an SF6 gas evacuation & refill unit revolves around two primary processes:

Evacuation: High-capacity vacuum pumps extract SF6 gas from equipment during maintenance, repairs, or decommissioning. This step eliminates moisture, air, and contaminants that can degrade insulation properties.

Refilling: After evacuation or purification, the unit refills the equipment with SF6 gas that meets industry purity standards (typically 99.9% or higher), restoring operational efficiency.

Advanced models also include gas recovery and purification features, allowing reclamation of up to 95% of used SF6 gas—reducing waste and operational costs.

Why Invest in a Quality SF6 Gas Evacuation & Refill Unit?

Choosing a reliable SF6 gas evacuation & refill unit offers multiple benefits:

• Environmental Compliance: SF6 is a potent greenhouse gas, so proper handling (per IEC 60480 standards) minimizes emissions, aligning with global regulations like the EU F-gas Regulation.
• Equipment Longevity: Removing contaminants prevents corrosion and dielectric breakdown, extending the lifespan of expensive electrical assets.
• Operational Safety: Leak-tight systems and pressure monitoring reduce risks of gas exposure, protecting technicians and facilities.
• Cost Savings: Gas recycling reduces the need for new SF6 purchases, lowering long-term expenses.

How to Choose the Right SF6 Gas Evacuation & Refill Unit

When selecting an SF6 gas evacuation & refill unit, consider these critical factors:

• Evacuation Speed: Look for units with vacuum levels up to 1 mbar or lower for efficient gas removal.
• Recovery Efficiency: Opt for models with >95% gas recovery rates to maximize reuse.
• Portability: Compact, wheeled designs are ideal for field maintenance in substations.
• Safety Features: Integrated pressure relief valves, gas detectors, and filter indicators enhance operational safety.

Common Applications of SF6 Gas Evacuation & Refill Units

These units are essential across various power sector scenarios:

• Routine maintenance of GIS and circuit breakers
• Commissioning new high-voltage equipment
• Decommissioning old SF6-insulated apparatus
• Emergency repairs after gas leaks or equipment failures

Investing in a high-performance SF6 gas evacuation & refill unit is not just a compliance measure—it’s a strategic decision to protect equipment, reduce costs, and minimize environmental impact.
